Install Belt Conveyor Machine Unloading Trolley Easy Running Walk On Rail Wheel

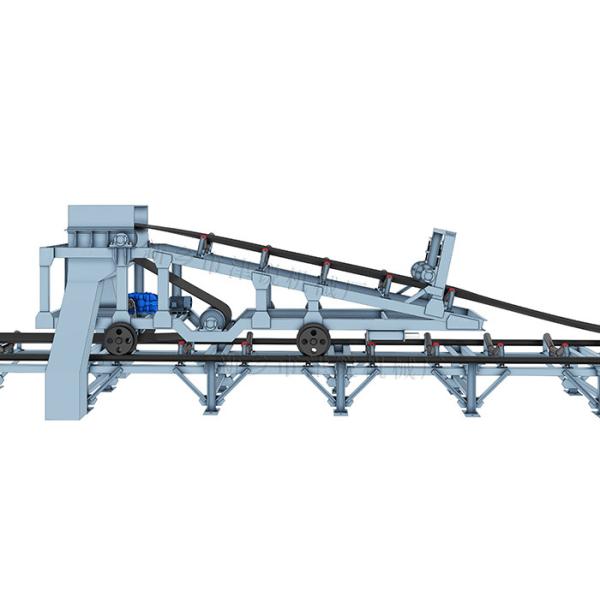

The belt conveyor unloading trolley is a separate component of the belt conveyor, which is mainly used in the occasions where the belt conveyor has unloading requirements. Its function is the same as the unloader, but it can realize multi-point cloth and cloth in different places. It is more convenient to use, but the relative cost is higher, suitable for use on large belt conveyors.
The belt conveyor unloading trolley is a kind of unloading device, which can unload at any point in the horizontal section of the conveyor, which is convenient for the overall distribution. Due to the steel rail, it can be easily moved and can be discharged on both sides or unloaded on one side. According to the need, it can be designed into three-way (middle and two sides, but can not be discharged at the same time on both sides), two-way (two sides or middle and single side) and single side discharge. Matching with the main belt conveyor is divided into TD75 and DTIIA unloading trucks.
working principle
The unloading car is driven by the motor on the car through the speed reducer and chain to make the trolley move back and forth on the guide rail of the conveyor frame. The material transported by the conveyor reaches the position of the trolley and falls into the unloading funnel of the trolley, thus To achieve the purpose of unloading at any point in the middle of the conveyor.
Structure composition
① Walking light rail. The walking light rail is erected on the conveyor and used as a supporting and running track for walking steel wheels.
② receiving funnel. The material is transported to the receiving funnel via the conveyor belt, and then the deposit is dispersed to the chute.
③ Chute. Like all head chutes, the chute of the unloading trolley includes double-sided discharge and single-sided discharge.
④ Walking drive structure. Because the unloading trolley can move by itself, it needs to install walking driving structure. The walking drive structure is composed of a motor reducer.
Technical datas for reference
| Electric Motor | Model | Y112M-6 |
| Power | 2.2KW |
| Speed | 960RMP/MIN |
| Reducer | Model | ZQ25-31.5-II Z |
| Gear ratio | 31.5 |
| Speed of unloading | 0.34m/s |
| Increase belt length | 3.5m |
| Rail Model | 15kg/m |
Use attention
① For the material with too much dust, the slot sealing device of the trough can be installed.
② If the original conveyor is not equipped with a belt conveyor unloading trolley, the latter is added, the intermediate frame and the outriggers should be reinforced to ensure the strength and rigidity during operation.
③ The speed of the belt conveyor is controlled below 2.5m / s, and the unloading trolley can run smoothly.
